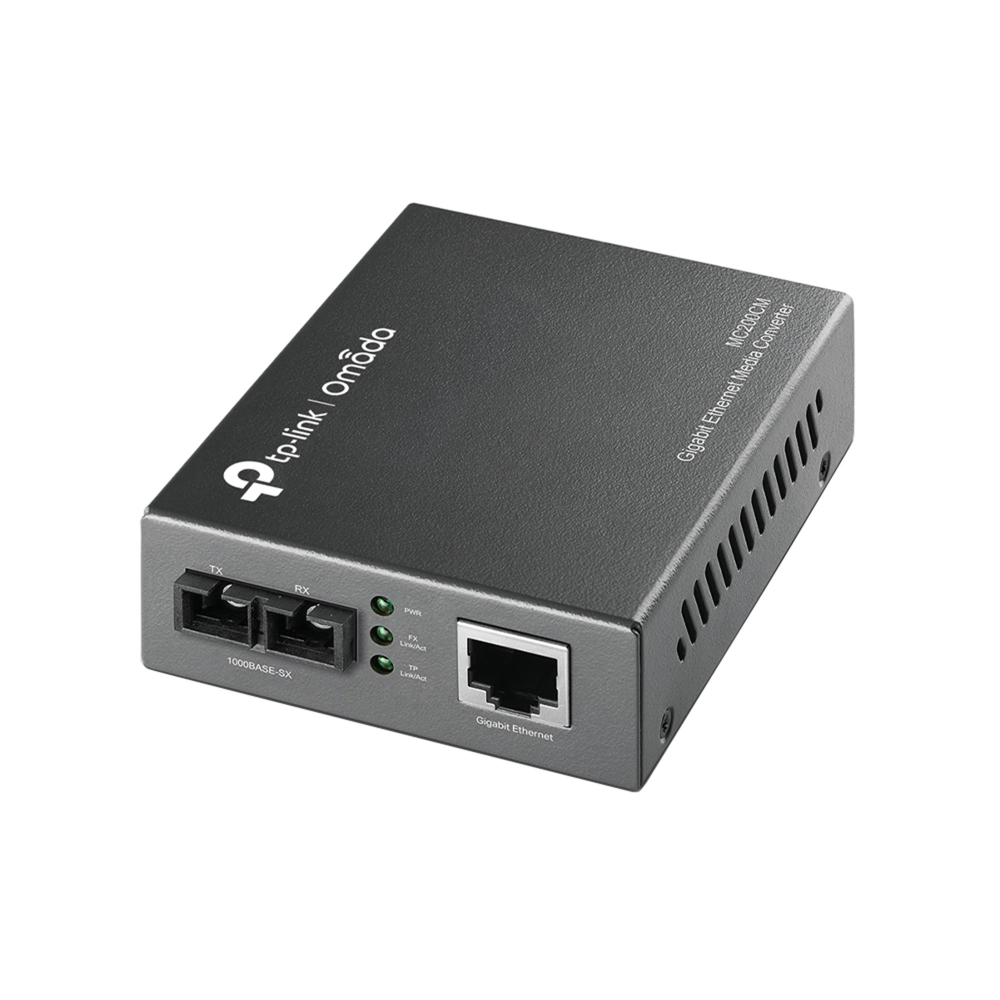

TP-Link MC200CM Gigabit Multi-Mode Media Converter

Description

Gigabit Multi-Mode Media Converter Overview

The TP-Link MC200CM is a Gigabit media converter that links 1000BASE-SX multi-mode fiber to a 1000BASE-T copper RJ45 port. It works at 850nm. It reaches up to 0.55km using 50/125um fiber; up to 0.22km using 62.5/125um fiber on fiber. It is made for camera, wireless and building-to-building network links. Looking for TP-Link MC200CM Gigabit Multi-Mode Media Converter Pakistan? One Chip lists it here with full details.

The MC200CM is a media converter designed to convert 1000BASE-SX fiber to 1000Base-T copper media or vice versa. Designed under IEEE802.3ab 1000Base-T and IEEE802.3z 1000Base-SX standards, the MC200CM is designed for use with multi-mode fiber cable utilizing the SC-Type connector. The MC200CM supports shortwave (SX) laser specification at a full wire speed forwarding rate. It works at 850nm on both transmitting and receiving data.

Key Features of TP-Link MC200CM

• Conversion: A Gigabit media converter that links 1000BASE-SX multi-mode fiber to a 1000BASE-T copper RJ45 port.
• Fiber Link: It works at 850nm.
• Distance: Fiber reach is up to 0.55km using 50/125um fiber; up to 0.22km using 62.5/125um fiber, which suits runs between rooms, floors and buildings.
• Ports: 2× 1000M SC/UPC ports and 1× 10/100/1000M RJ45 port (Auto MDI/MDIX).
• Compact Size: The case measures 3.7*2.9*1.1 in. (94.5*73.0*27.0 mm) and draws up to 1.66W.

Why Choose the TP-Link MC200CM Gigabit Multi-Mode Media Converter?

A media converter lets you reach places a copper network cable cannot, such as another building or a distant camera, by using fiber for the long part of the link. You need two converters, one at each end of the fiber link.

If you are comparing the Gigabit Multi-Mode Media Converter Price in Pakistan, consider the fiber type, the wavelength and the distance you need to cover before making your purchase. Warranty is provided as per the One Chip warranty policy.

Order the Gigabit Multi-Mode Media Converter in Pakistan

Check the fiber type and connector of your link before you order. Compare the specifications on this page. Note the distance you need to cover. The price changes often, so message One Chip on WhatsApp for the latest price. One Chip ships across Pakistan. Cities include Karachi, Lahore, Islamabad, Rawalpindi, Faisalabad, Multan, Peshawar and Quetta. Need help choosing? Message One Chip before you buy.

Looking for something similar? Browse more products in the Media Converters category and the TP-Link media converters page to compare models before you order.
