TP-Link · Model Beam Bridge 5 UR KIT

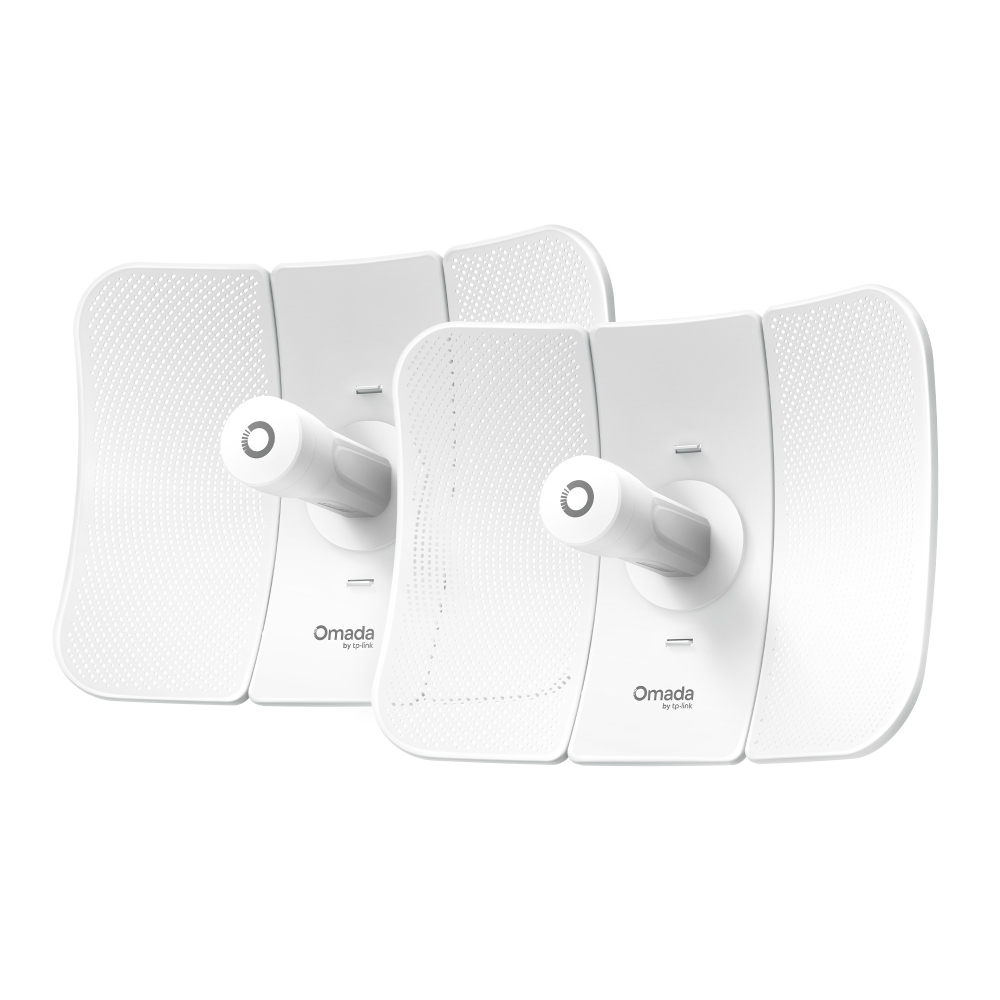

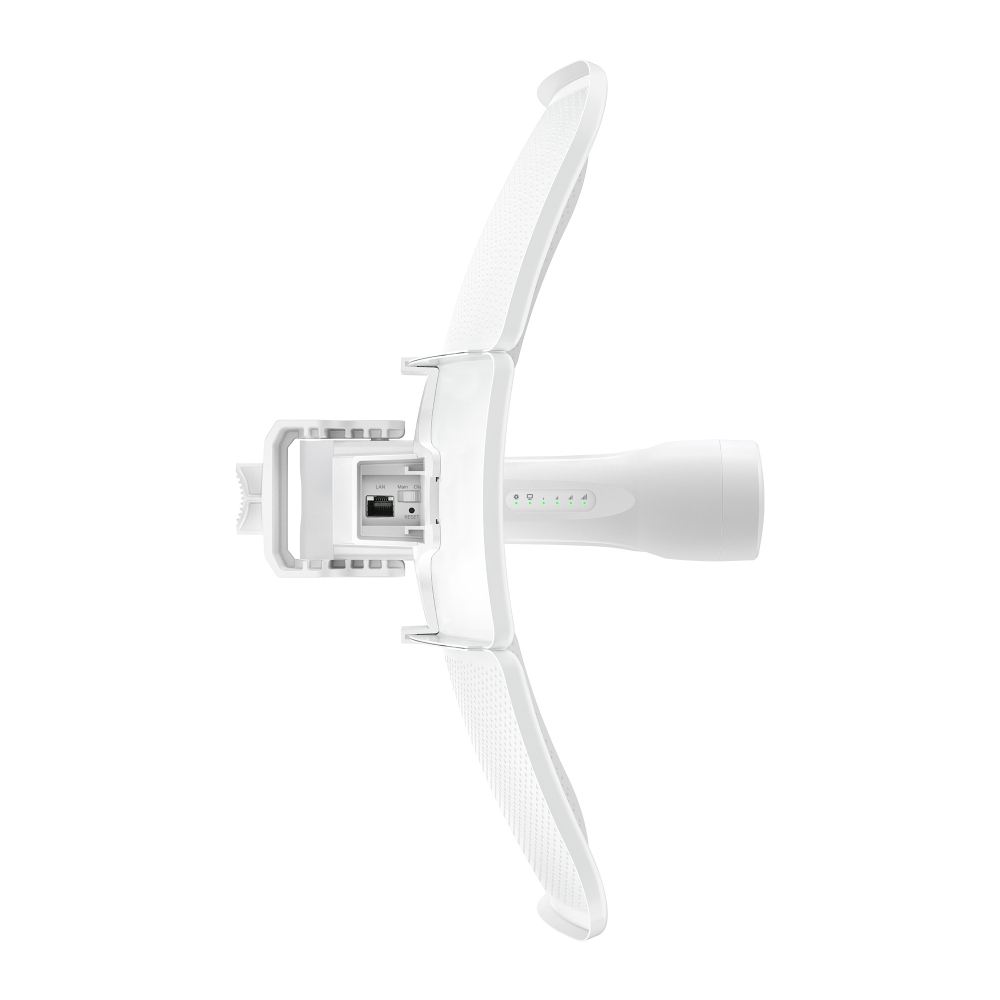

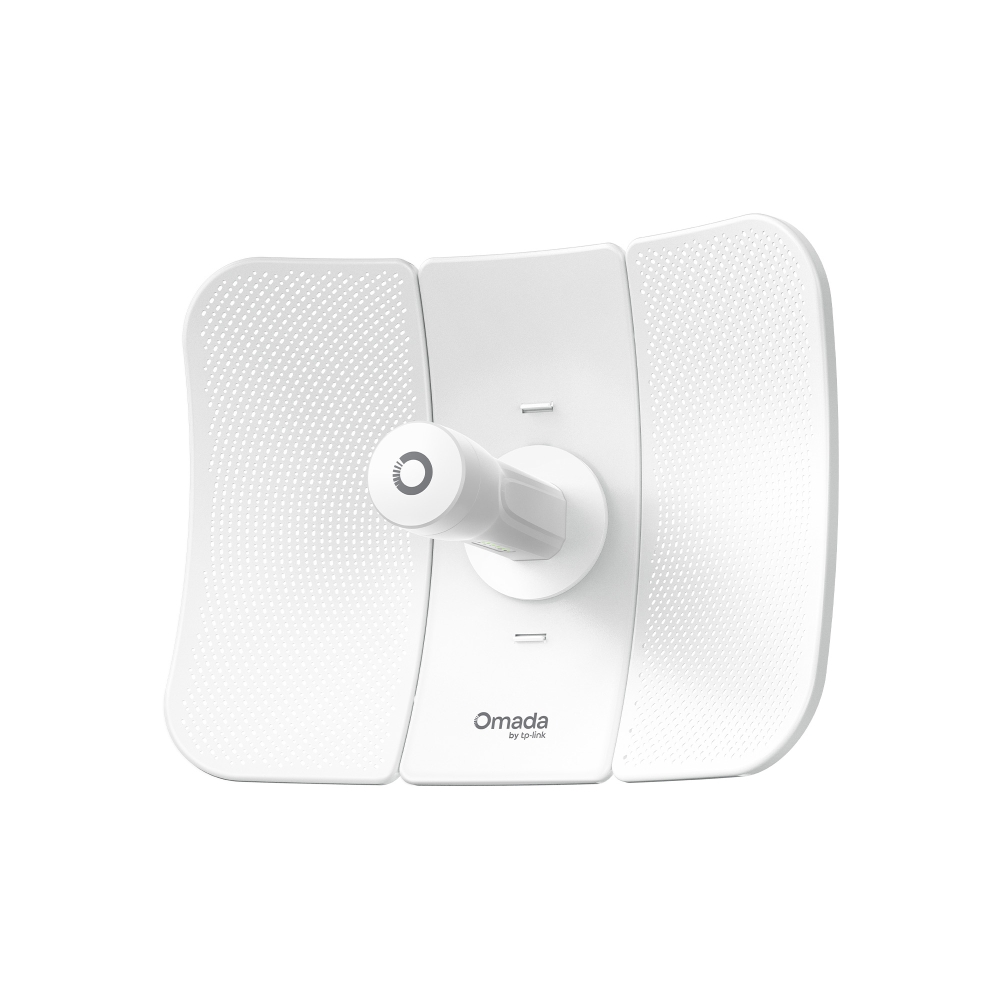

TP-Link Beam Bridge 5 UR KIT Omada 5GHz 867Mbps Ultra-Range Indoor/Outdoor Wireless Bridge

  • Point-to-point wireless bridge kit that links two buildings or sites without running a long cable
  • Up to 867 Mbps on 5 GHz for smooth browsing, video calls and streaming across the whole floor
  • Powered through one Ethernet cable (802.3af PoE (1,2pins), so data and power share a single wire
  • Pole Mounting (Kits Included) for a clean install, with mounting kits for the surface you choose
  • Joins Omada SDN for central control from one dashboard, with seamless roaming and zero-touch setup
  • Handy for linking cameras, offices, warehouses and shops across a yard, road, rooftop or farm
  • Works with Omada PoE switches and the Omada app, so you can add more access points as your site grows

Price on WhatsApp

Warranty terms vary by product.

Order on WhatsApp
SKU: Beam Bridge 5 UR KIT Category: Tags: access point pakistan, beam bridge 5 ur kit, omada access point, omada sdn, tp-link, tp-link beam bridge 5 ur kit, wi-fi 5 access point, wireless bridge access point Brand:

Description

Wireless Bridge Overview

The TP-Link Beam Bridge 5 UR KIT is a Wi-Fi 5 wireless bridge access point from the Omada range, working on IEEE 802.11 a/n/ac at 5 GHz. It is made for offices, schools, hotels, shops and clinics that need steady Wi-Fi across several rooms and many users. Looking for TP-Link Beam Bridge 5 UR KIT Bridge Kit Price in Pakistan? One Chip lists it here with full details.

Key Features of TP-Link Beam Bridge 5 UR KIT

  • Wi-Fi Standard: It works on IEEE 802.11 a/n/ac at 5 GHz, so it serves Wi-Fi 5 devices and older ones too.
  • Speed: Wireless rates reach 867 Mbps on 5 GHz, with External 2×2 Dual-Polarized Directional MIMO Antennas; 5 GHz: 23 dBi; Antenna Beamwidth; Horizontal: 9°, Vertical: 7°; Weatherproof Enclosure; IP65; Bandwidth; 5 GHz: 20 MHz/40 MHz/80 MHz.
  • Ports and Power: 1 x 10M/100M/1000Mbps Gigabit Ethernet Port (RJ45). Power comes from 802.3af PoE (1,2pins; 3,6pins); 24V or 48V Passive PoE (+4,5pins; -7,8pins) (Passive PoE Adapter Included).
  • Mounting: Pole Mounting (Kits Included).
  • Omada SDN: It joins the Omada SDN platform, so you can manage many access points from one controller, the Omada app or the cloud, with seamless roaming and zero-touch provisioning.

Why Choose the TP-Link Beam Bridge 5 UR KIT Omada 5GHz 867Mbps Ultra-Range Indoor/Outdoor Wireless Bridge?

Omada access points are made for business Wi-Fi. One controller, the Omada app or the cloud manages many access points, users roam between them without dropping a call, and you can add more units as your office, school, hotel or shop grows. Because the access point is powered over the network cable, you can also keep Wi-Fi running during load shedding by putting the PoE switch on a UPS.

If you are comparing the Wi-Fi 5 Wireless Bridge Access Point Price in Pakistan, consider the Wi-Fi generation, the speed you need, the number of users and whether it will go indoors or outdoors before making your purchase. Warranty is provided as per the One Chip warranty policy.

Order the TP-Link Beam Bridge 5 UR KIT in Pakistan

Check that you have a PoE switch or injector, or the power adapter that suits this model. Plan the mounting spot and the cable run. Compare the specifications on this page before you order. The price changes often, so contact One Chip for the latest price. One Chip ships across Pakistan. Cities include Karachi, Lahore, Islamabad, Rawalpindi, Faisalabad, Multan, Peshawar and Quetta. Need help choosing? Message One Chip before you buy.

BrandTP-Link (Omada)
ModelBeam Bridge 5 UR KIT
TypeWireless Bridge Kit
Wireless StandardsIEEE 802.11 a/n/ac
Frequency5 GHz
Speed5 GHz: Up to 867 Mbps
AntennaExternal 2×2 Dual-Polarized Directional MIMO Antennas; 5 GHz: 23 dBi; Antenna Beamwidth; Horizontal: 9°, Vertical: 7°; Weatherproof Enclosure; IP65; Bandwidth; 5 GHz: 20 MHz/40 MHz/80 MHz
Ports1 x 10M/100M/1000Mbps Gigabit Ethernet Port (RJ45); PoE In
Power Supply802.3af PoE (1,2pins; 3,6pins); 24V or 48V Passive PoE (+4,5pins; -7,8pins) (Passive PoE Adapter Included)
Max. Power Consumption15.8W
Transmission PowerCE:; FCC:
MountingPole Mounting (Kits Included)
Dimensions (W x D x H)14.4 × 11.0 × 8.1 in (366 × 280 × 207 mm)
Wireless SecurityVLAN; Rogue AP Detection; Maximum number of MAC Filter: 4,000; Wireless Encryption
Package ContentBeam Bridge 5 UR KIT; Installation Guide; Mounting Kit; Passive PoE Adapter; Power Cord; Lightning Protection; Ethernet Ports: ±6 kV

What is the price of the TP-Link Beam Bridge 5 UR KIT in Pakistan?

The price changes often, so contact One Chip for the latest price. One Chip delivers across Pakistan.

Which Wi-Fi standard does the Beam Bridge 5 UR KIT support?

It supports IEEE 802.11 a/n/ac, which is Wi-Fi 5.

How is the Beam Bridge 5 UR KIT powered?

Power: 802.3af PoE (1,2pins; 3,6pins); 24V or 48V Passive PoE (+4,5pins; -7,8pins) (Passive PoE Adapter Included).

Where can I install the Beam Bridge 5 UR KIT?

Pole Mounting (Kits Included). Check the mounting kit in the box.

Do I need an Omada controller?

No, but a controller (the Omada app, a hardware controller or the cloud) lets you manage many access points from one place and use seamless roaming.

Does One Chip deliver the Beam Bridge 5 UR KIT across Pakistan?

Yes. One Chip delivers across Pakistan, including Karachi, Lahore, Islamabad and Rawalpindi.
