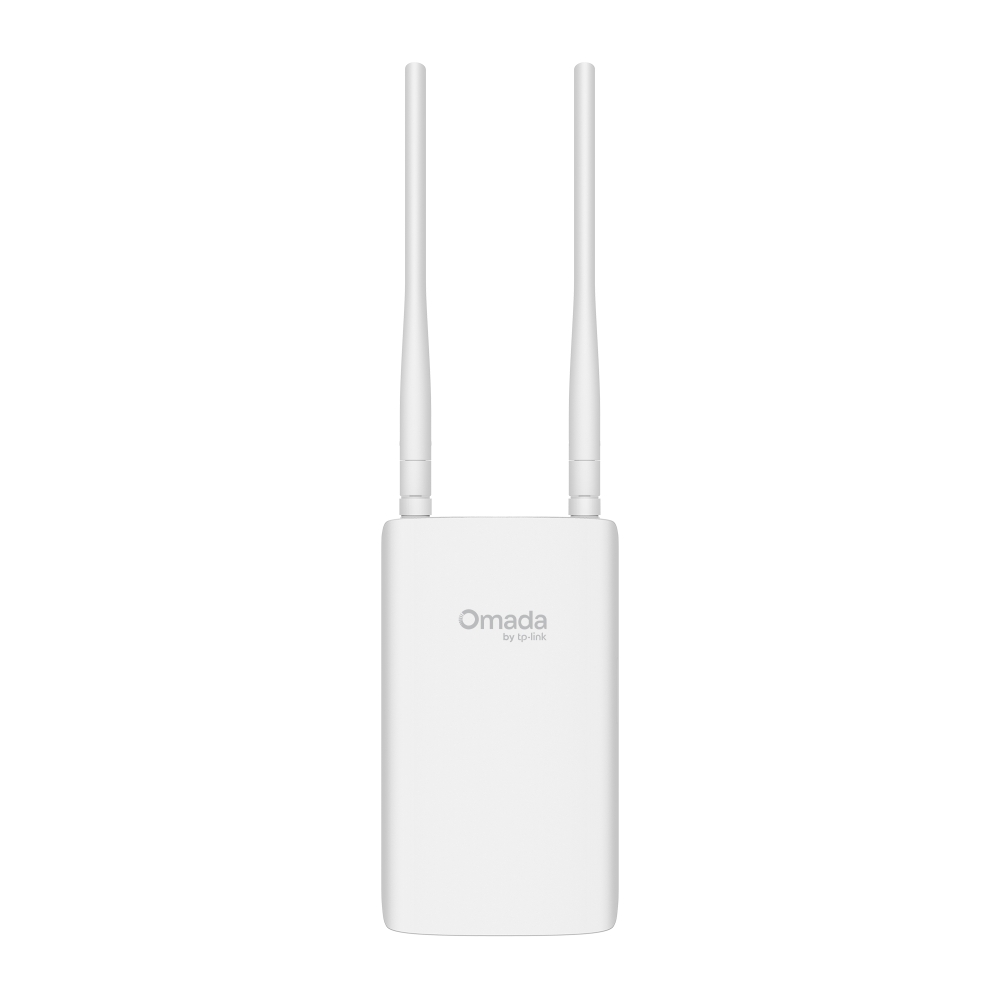

TP-Link EAP603-Outdoor AX1800 Wi-Fi 6 Outdoor Access Point

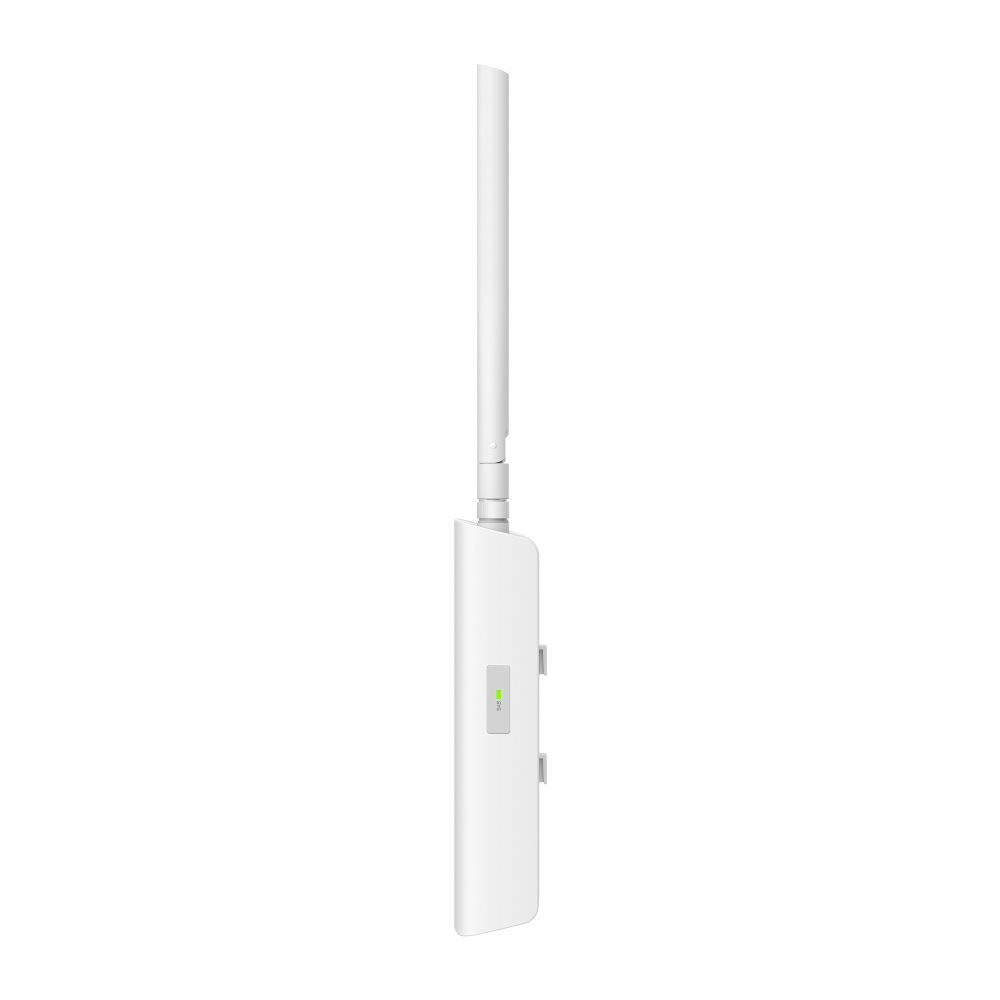

TP-Link EAP603-Outdoor AX1800 Wi-Fi 6 Outdoor Access Point - view 2

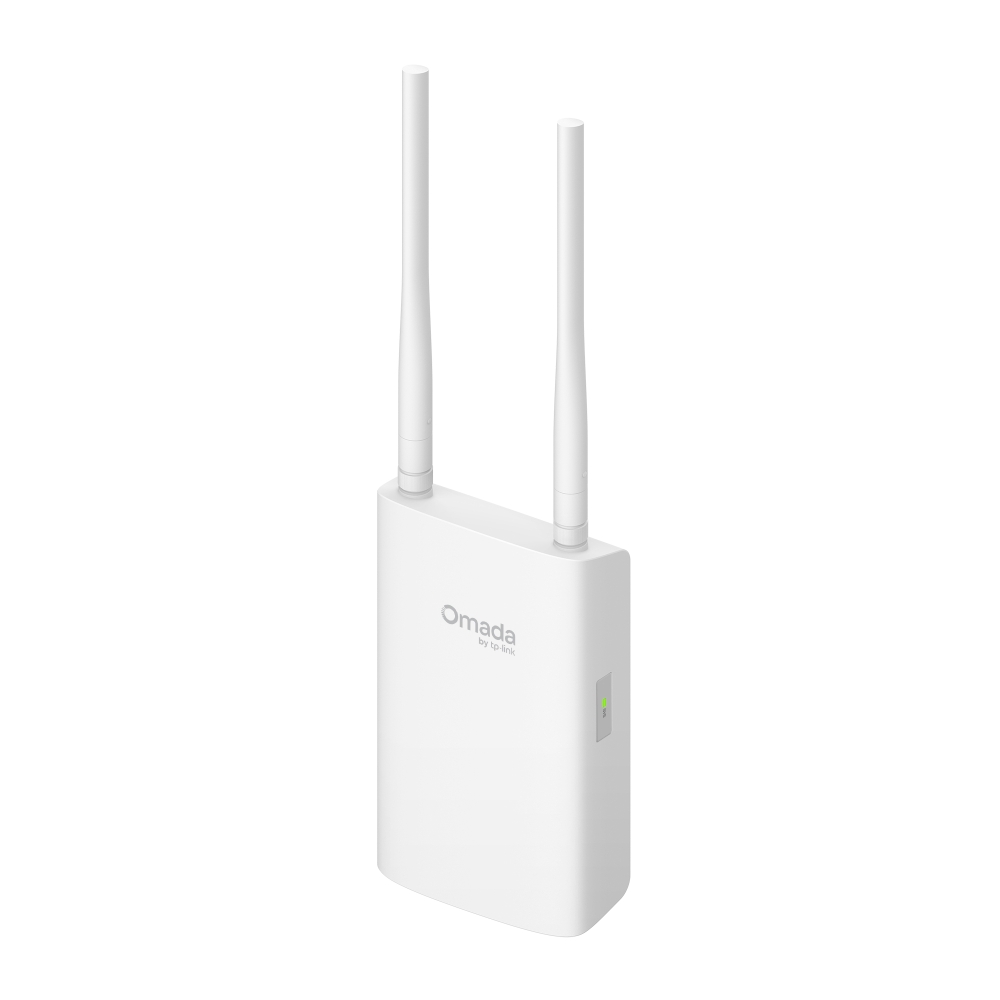

TP-Link EAP603-Outdoor AX1800 Wi-Fi 6 Outdoor Access Point - view 3

Select City

Delivery may be delayed to the following day in case of a courier-related issue.

TP-Link · Model EAP603-Outdoor

TP-Link EAP603-Outdoor AX1800 Wi-Fi 6 Outdoor Access Point

  • AX1800 Wi-Fi 6 outdoor access point for steady Wi-Fi across lawns, car parks, yards and resorts
  • Wireless speeds of up to 573 Mbps on 2.4 GHz and 1201 Mbps on 5 GHz for smooth browsing, calls and streaming
  • Powered over one Ethernet cable with PoE, so data and power share a single wire and installs stay neat
  • Mounting kits are included for a clean install on a ceiling or wall where you need coverage
  • Joins Omada SDN for central control from one dashboard, with seamless roaming and zero-touch setup
  • Suited to offices, schools, hotels, shops and clinics that need steady Wi-Fi across several rooms
  • Works with Omada PoE switches and the Omada app, so you can add more access points as your site grows

Price on WhatsApp

Warranty terms vary by product.

Order on WhatsApp
SKU: EAP603-Outdoor Category: Tags: access point pakistan, eap603-outdoor, omada access point, omada sdn, outdoor access point, tp-link, tp-link eap603-outdoor, wi-fi 6 access point Brand:

Description

Wi-Fi 6 Outdoor Access Point Overview

The TP-Link EAP603-Outdoor is a Wi-Fi 6 outdoor access point rated AX1800 from the Omada range, working on 5 GHz: IEEE 802.11a/n/ac/ax; 2.4 GHz: IEEE 802.11b/g/n/ax at 5 GHz; 2.4 GHz. It is made for outdoor areas such as lawns, car parks, factory yards, farmhouses and resorts that need steady Wi-Fi across several rooms and many users. Looking for TP-Link EAP603-Outdoor Access Point Price in Pakistan? One Chip lists it here with full details.

Key Features of TP-Link EAP603-Outdoor

  • Wi-Fi Standard: It works on 5 GHz: IEEE 802.11a/n/ac/ax; 2.4 GHz: IEEE 802.11b/g/n/ax at 5 GHz; 2.4 GHz, so it serves Wi-Fi 6 devices and older ones too.
  • Speed: Wireless rates reach 573 Mbps on 2.4 GHz and 1201 Mbps on 5 GHz, with Wi-Fi; 2.4 GHz: 2 × 4 dBi (peak gain), external omnidirectional antennas; 5 GHz: 2 × 5 dBi (peak gain), external omnidirectional antennas; *Note: The gains above are the single-antenna peak gains.; IoT; Bluetooth: 1 × 4 dBi (peak gain), internal omnidirectional; antennas; Bluetooth.
  • Ports and Power: 1× 10M/100M/1000Mbps Gigabit Ethernet Port (RJ45). Power comes from Input: 802.3at PoE+: 42.5 – 57 V, 0.36A.
  • Mounting: Pole Mount.
  • Omada SDN: It joins the Omada SDN platform, so you can manage many access points from one controller, the Omada app or the cloud, with seamless roaming and zero-touch provisioning.

Why Choose the TP-Link EAP603-Outdoor AX1800 Wi-Fi 6 Outdoor Access Point?

Omada access points are made for business Wi-Fi. One controller, the Omada app or the cloud manages many access points, users roam between them without dropping a call, and you can add more units as your office, school, hotel or shop grows. Because the access point is powered over the network cable, you can also keep Wi-Fi running during load shedding by putting the PoE switch on a UPS.

If you are comparing the Wi-Fi 6 Outdoor Access Point Price in Pakistan, consider the Wi-Fi generation, the speed you need, the number of users and whether it will go indoors or outdoors before making your purchase. Warranty is provided as per the One Chip warranty policy.

Order the TP-Link EAP603-Outdoor in Pakistan

Check that you have a PoE switch or injector, or the power adapter that suits this model. Plan the mounting spot and the cable run. Compare the specifications on this page before you order. The price changes often, so contact One Chip for the latest price. One Chip ships across Pakistan. Cities include Karachi, Lahore, Islamabad, Rawalpindi, Faisalabad, Multan, Peshawar and Quetta. Need help choosing? Message One Chip before you buy.

Looking for something similar? Browse more products in the Access Points category and the Omada access points page to compare models before you order.

BrandTP-Link (Omada)
ModelEAP603-Outdoor
TypeWi-Fi 6 Outdoor Access Point
Wireless Standards5 GHz: IEEE 802.11a/n/ac/ax; 2.4 GHz: IEEE 802.11b/g/n/ax
Frequency5 GHz; 2.4 GHz
Speed2.4 GHz: up to 573 Mbps; 5 GHz: up to 1201 Mbps; *Note: Country-Specific Restriction Apply
AntennaWi-Fi; 2.4 GHz: 2 × 4 dBi (peak gain), external omnidirectional antennas; 5 GHz: 2 × 5 dBi (peak gain), external omnidirectional antennas; *Note: The gains above are the single-antenna peak gains.; IoT; Bluetooth: 1 × 4 dBi (peak gain), internal omnidirectional; antennas; Bluetooth
Ports1× 10M/100M/1000Mbps Gigabit Ethernet Port (RJ45); PoE in; 1× Grounding Termina
Power SupplyInput: 802.3at PoE+: 42.5 - 57 V, 0.36A
Max. Power Consumption802.3at (PoE+): 15.8w, 2.4GHz radio 2×2, 5GHz radio 2×2, wired link rate can be up; to 1 Gbps, etc.; Idle mode: 4.8W(PoE)
Transmission PowerMaximum transmit power:; CE (ERIP); 2.4 GHz: 20 dBm; 5 GHz: 23 dBm in U-NII-1, 23 dBm in U-NII-2A, 29 dBm in U-NII-2C,; FCC (Conducted Power); 2.4 GHz: 25 dBm; 5 GHz: 27 dBm in U-NII-1, 24 dBm in U-NII-2A, 24 dBm in U-NII-2C, 27 dBm in U-NII-3; Minimum transmit power
MountingPole Mount (Kits included); Wall Mount (Kits included)
Dimensions (W x D x H)Main Unit: 230 × 207.5 × 69.7 mm (9.06 × 8.17 × 2.74 in.); Shipping Unit: 324 × 104 × 245 mm (12.76 × 4.09 × 9.65 in.)
Wireless SecurityACL; MAC Filter; 802.1X Authentication; MAC-Based Authentication; WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise, Enhanced Open, and None; Radius Accounting; PPSK without Radius, PPSK with Radius (Generic Radius with bound MAC/EKMS/Generic Radius with unbound MAC); Captive Portal: No Authentication, Simple Password, Hotspot (Voucher / Local User / SMS / RADIUS / Form Auth), RADIUS Server, External LDAP Server, External Portal Server, Pre-Authentication Access, and Authentication-Free Client
Package ContentEAP603-Outdoor; Passive PoE Adapter; Power Cord; Installation Guide; Mounting Kit; Waterproof Kit

What is the price of the TP-Link EAP603-Outdoor in Pakistan?

The price changes often, so contact One Chip for the latest price. One Chip delivers across Pakistan.

Which Wi-Fi standard does the EAP603-Outdoor support?

It supports 5 GHz: IEEE 802.11a/n/ac/ax; 2.4 GHz: IEEE 802.11b/g/n/ax, which is Wi-Fi 6.

How is the EAP603-Outdoor powered?

Power: Input: 802.3at PoE+: 42.5 - 57 V, 0.36A.

Where can I install the EAP603-Outdoor?

Pole Mount. Check the mounting kit in the box.

Do I need an Omada controller?

No, but a controller (the Omada app, a hardware controller or the cloud) lets you manage many access points from one place and use seamless roaming.

Does One Chip deliver the EAP603-Outdoor across Pakistan?

Yes. One Chip delivers across Pakistan, including Karachi, Lahore, Islamabad and Rawalpindi.
